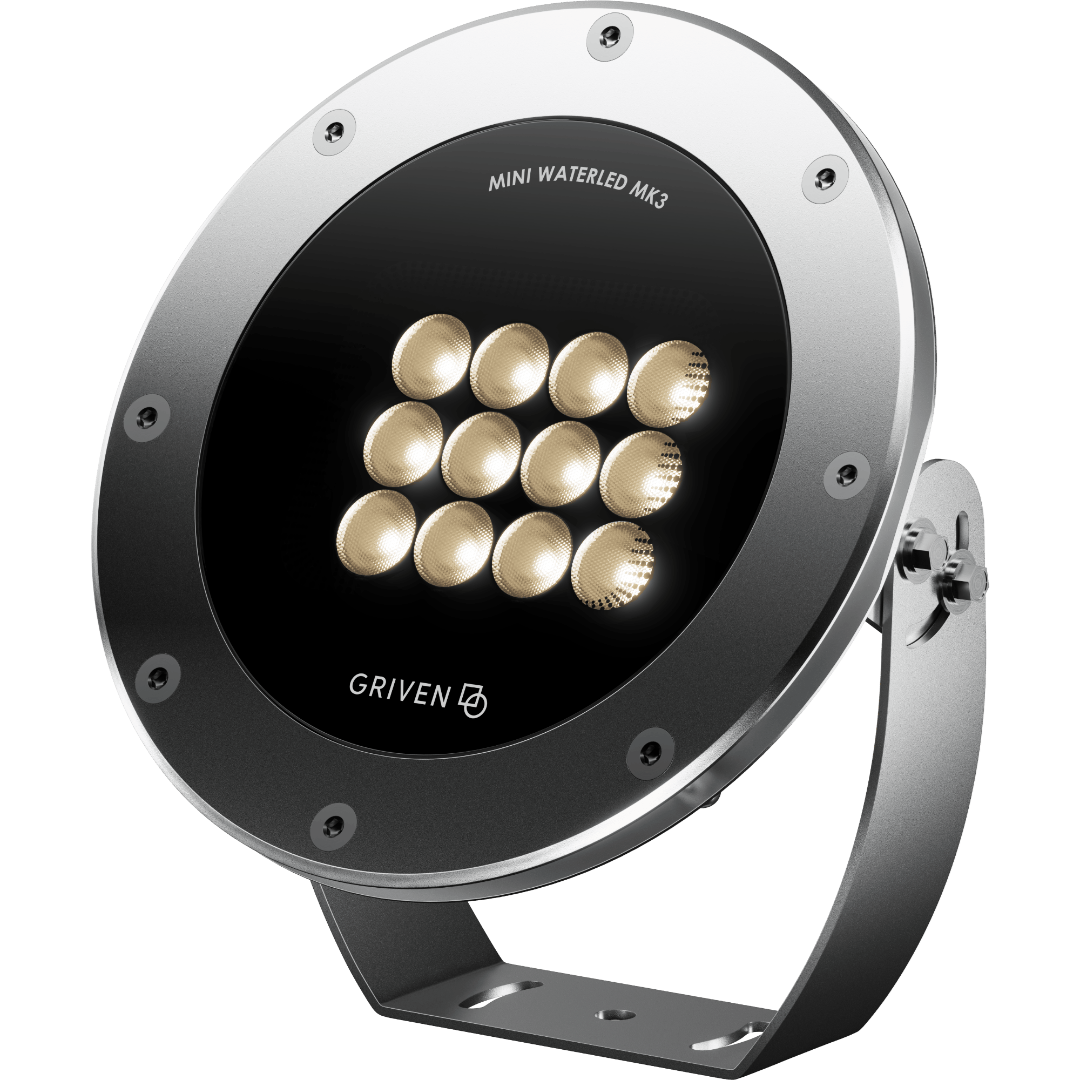

Mini Waterled MK3 White Light

Mini Waterled MK3 White Light

AL8369

  • Max. delivered lm output: 2625 lm / 105 lm/W
  • Size: (HxWxD) 232.5x215x89.5 mm / 9.1x8.5x3.5”
  • Control system: DMX-RDM
  • Compact underwater LED fixture specific for small sized installations in chlorine water and marine environment. FOR UNDERWATER USE ONLY.

View LED colour configuration: 40 Natural White 4000K
  • 40 Natural White 4000K
  • 30 Warm White 3000K
  • 27 Warm White 2700K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

Small-size fountains and waterfalls, as well as reflecting pools, are the ideal applications for the compact marine-grade MINI WATERLED MK3 W, now restyled and further optimized. The superior lumens life assisted by the on-board electronic thermal management exceeds the industry standards lifetime. The certified IP68 Class III rating and heavy-duty AISI 316L stainless steel body redefine the virtually maintenance free performance. The natural or warm white LEDs set-ups available provide an unprecedented astonishing white light output quality allowing a broad range of application purposes. DMX-RDM digital control system adds up to the infrared remote control option for an even more comfortable and straightforward fixture management.
Colour configuration
High brightness 4000K Natural White, 3000K or 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
12° Spot (Spot)
15° NA (Narrow)
25° ME (Medium)
48° WI (Wide)
61° EW (Extra wide)
14°x39° EL (Elliptical)
23°x37° WL (Elliptical wide)
19° (5° incl.)x38° WW (Wall Wash)
FR (Frost)
Max. Delivered lumen output
2625 lm
Max. lumen/Watt
105 lm/W
Input voltage
24 VDC
Power consumption
25W at full intensity
Ingress protection rating
IP68 (-3m max.)
Impact resistance rating
IK10
External operating limits
ta max = 50°C (122°F)
Warranty
2-year warranty
Accessories
External power supply unit required

Light Beam Effects

  • Frost
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Elliptical wide
  • Wall wash


Overview

  • IP68 (-3m max.)
  • IK10
  • DMX
  • RDM
  • III
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • ETL certified version available on request
