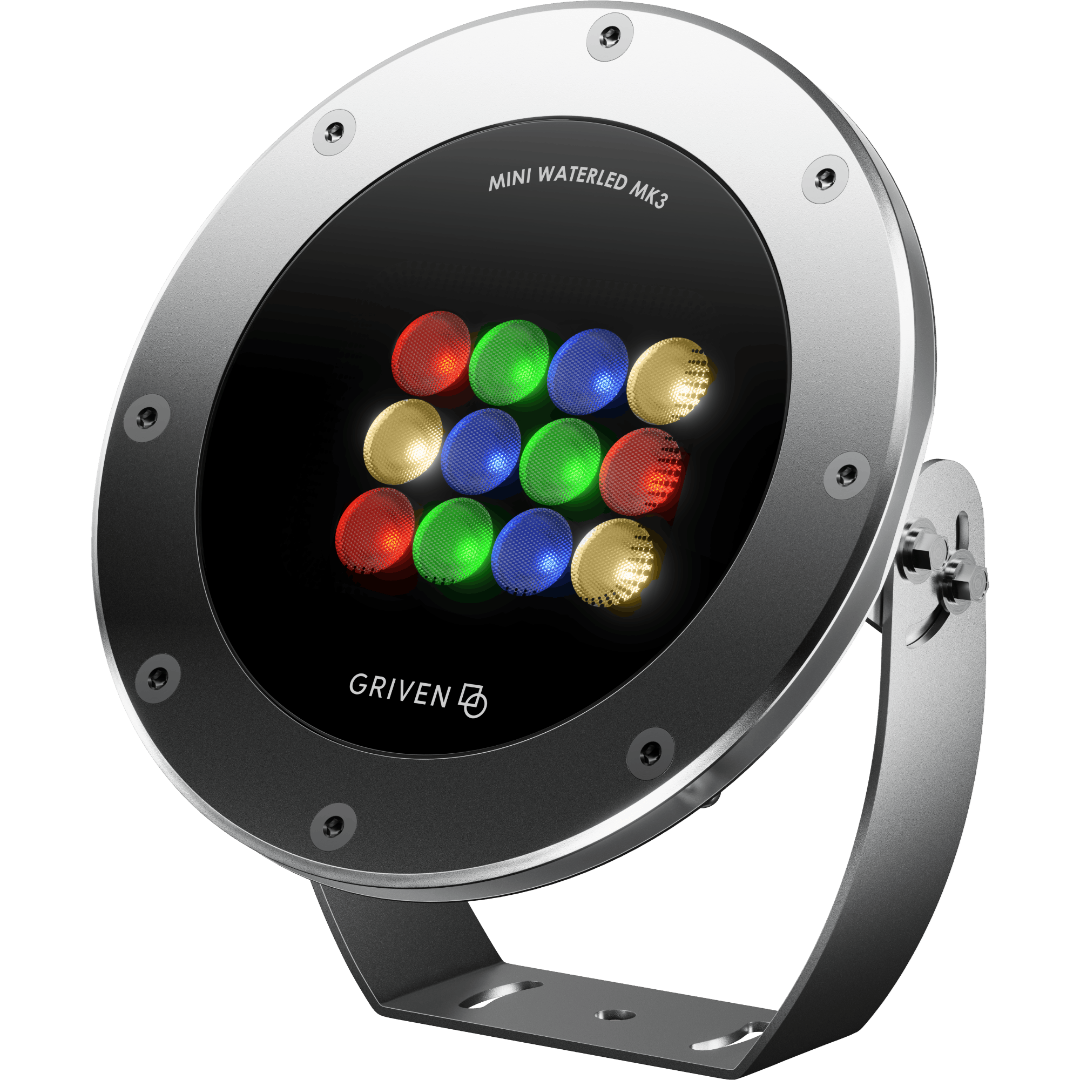

Mini Waterled MK3 RGBW

AL8369

  • Max. delivered lm output: 779 lm / 31 lm/W
  • Size: (HxWxD) 232.5x215x89.5 mm / 9.1x8.5x3.5”
  • Control system: DMX-RDM
  • Compact underwater LED fixture specific for small sized installations in chlorine water and marine environment. FOR UNDERWATER USE ONLY.

View LED colour configuration: RGB+W 4000K
  • RGB+W 4000K
  • RGB+W 3000K
Contact us  Save product
COLOUR CHANGING
print

General Features

Small-size fountains and waterfalls, as well as reflecting pools, are the ideal applications for the compact marine-grade MINI WATERLED MK3 RGBW, now restyled and further optimized. The superior lumens life assisted by the on-board electronic thermal management exceeds the industry standards lifetime. The certified IP68 Class III rating and heavy-duty AISI 316L stainless steel body redefine the virtually maintenance free performance. The combination of premium class RGBW LEDs, featuring either 4000K or 3000K white, delivers the widest range of warm white shades and pastel tones assortment. DMX-RDM digital control system adds up to the infrared remote control option for an even more comfortable and straightforward fixture management.
Colour configuration
High brightness RGB+W 4000K or 3000K Power LEDs
Optical configuration
8° Spot (Spot)
12° NA (Narrow)
23° ME (Medium)
44° WI (Wide)
59° EW (Extra wide)
9°x42° EL (Elliptical)
19°x39° WL (Elliptical wide)
14° (5° incline)x37° WW (Wall Wash)
FR (Frost)
Max. Delivered lumen output
779 lm
Max. lumen/Watt
31 lm/W
Input voltage
24 VDC
Power consumption
25W at full intensity
Ingress protection rating
IP68 (-3m max.)
Impact resistance rating
IK10
External operating limits
ta max = 50°C (122°F)
Warranty
2-year warranty
Accessories
External power supply unit required

Light Beam Effects

  • Frost
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Elliptical wide
  • Wall wash


Overview

  • IP68 (-3m max.)
  • IK10
  • DMX
  • RDM
  • III
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • ETL certified version available on request
