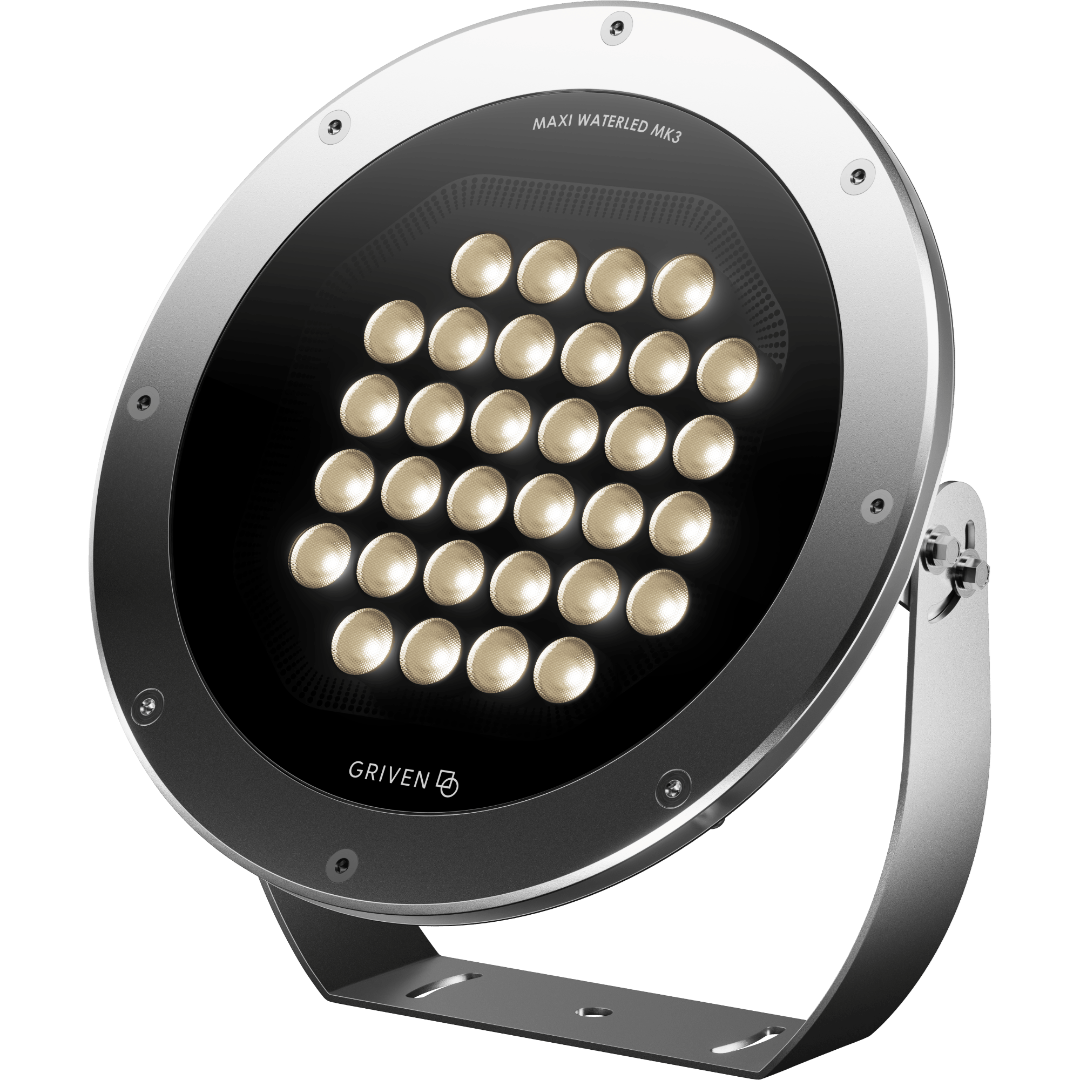

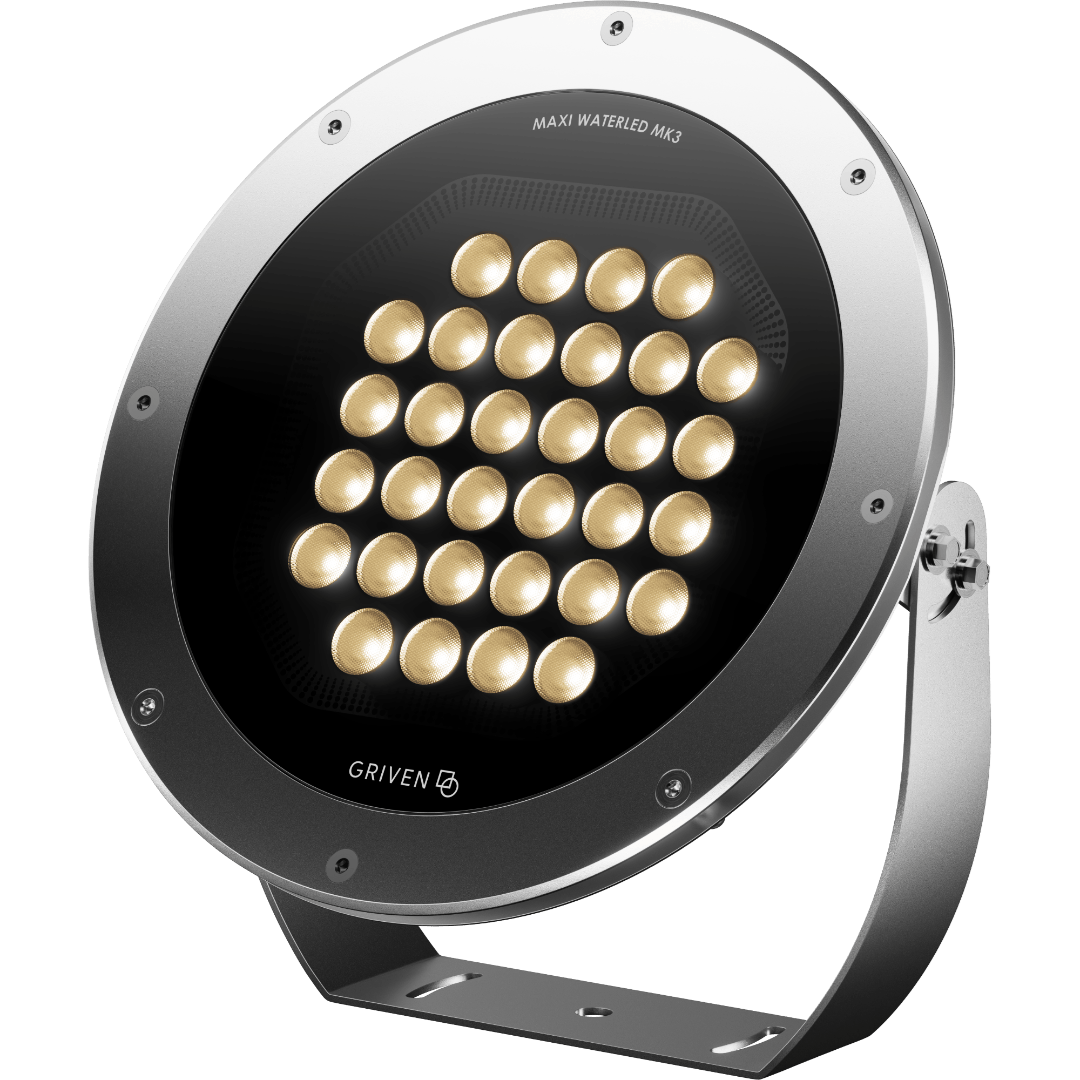

Maxi Waterled MK3 White Light

Maxi Waterled MK3 White Light

AL8377

  • Max. delivered lm output: 9030 lm / 105 lm/W
  • Size: (HxWxD) 315x298x89.5mm / 12.4x11.7x3.5”
  • Control system: DMX-RDM
  • Powerful underwater LED fixture specific for a huge variety of large-scale submerged installations in chlorine water and marine environment. FOR UNDERWATER USE ONLY,

View LED colour configuration: 40 Natural White 4000K
  • 40 Natural White 4000K
  • 30 Warm White 3000K
  • 27 Warm White 2700K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

Providing an astonishingly performing light output from a restyled, elegant chassis, MAXI WATERLED MK3 W is capable of enhancing wide-scale underwater applications with diverse white light effects. Fitted with AISI 316L stainless steel housing, it relies upon an IP68 protection rating and is the ideal choice for a huge variety of submerge installations in chlorine water and marine environment. DMX-RDM digital control system adds up to the infrared remote control option for a comfortable and hassle-free fixture management. The natural or warm white LEDs set-ups available provide an unprecedented astonishing white light output quality allowing a broad range of application purposes.
Video
Colour configuration
High brightness 4000K Natural White, 3000K or 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
12° Spot (SP)
15° NA (Narrow)
25° ME (Medium)
48° WI (Wide)
61° EW (Extra wide)
14°x39° EL (Elliptical)
22°x37° WL (Elliptical wide)
19° (5° incl.)x38° WW (Wall Wash)
FR (Frost)
Max. Delivered lumen output
9030 lm
Max. lumen/Watt
105 lm/W
Input voltage
24 VDC
Power consumption
86W at full intensity
Ingress protection rating
IP68 (-3m max.)
Impact resistance rating
IK10
External operating limits
ta max = 50°C (122°F)
Warranty
2-year warranty
Accessories
External power supply unit required

Light Beam Effects

  • Frost
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Elliptical wide
  • Wall wash


Overview

  • IP68 (-3m max.)
  • IK10
  • DMX
  • RDM
  • III
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • ETL certified version available on request
