Maxi Waterled MK3 RGBW

AL8377

  • Max. delivered lm output: 4025 lm / 62 lm/W
  • Size: (HxWxD) 315x298x89.5mm / 12.4x11.7x3.5”
  • Control system: DMX-RDM
  • Powerful underwater LED fixture specific for a huge variety of large-scale submerged installations in chlorine water and marine environment, FOR UNDERWATER USE ONLY,

View LED colour configuration: RGB+W 4000K
  • RGB+W 4000K
  • RGB+W 3000K
Contact us  Save product
COLOUR CHANGING
print

General Features

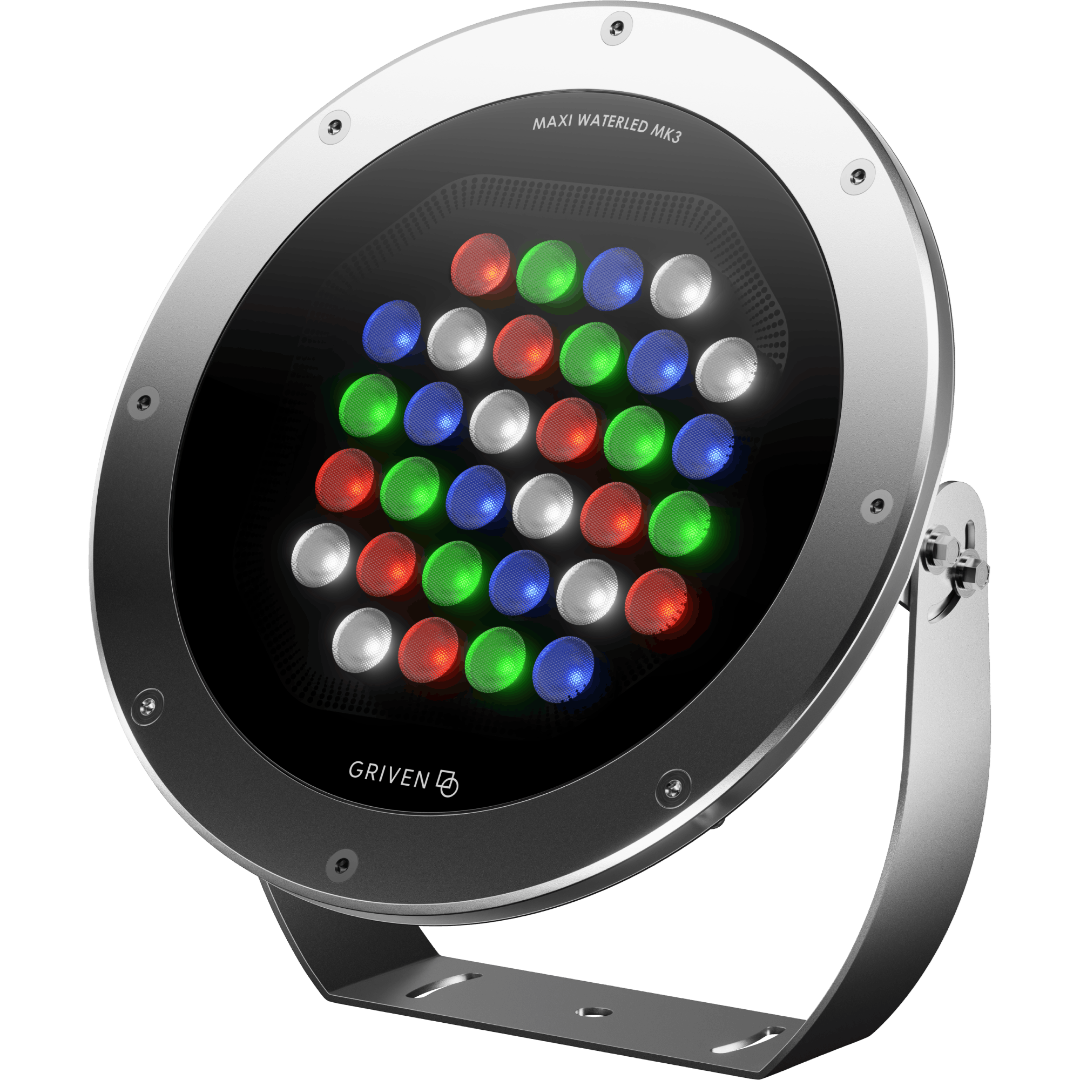

Providing an astonishingly performing light output from a restyled, elegant chassis, MAXI WATERLED MK3 RGBW is capable of enhancing wide-scale underwater applications with multicolour light effects. Fitted with AISI 316L stainless steel housing, it relies upon an IP68 protection rating and is the ideal choice for a huge variety of submerged installations in chlorine water and marine environment. DMX-RDM digital control system adds up to the infrared remote control option for a comfortable and hassle-free fixture management. The combination of premium class RGBW LEDs, featuring either 4000K or 3000K white, delivers the widest range of warm white shades and pastel tones assortment.
Video
Colour configuration
High brightness RGB+W 4000K or 3000K Power LEDs
Optical configuration
8° Spot (SP)
12° NA (Narrow)
23° ME (Medium)
44° WI (Wide)
59° EW (Extra wide)
9°x42° EL (Elliptical)
19°x39° WL (Elliptical wide)
14° (5° incline)x37° WW (Wall Wash)
FR (Frost)
Max. Delivered lumen output
4025 lm
Max. lumen/Watt
62 lm/W
Input voltage
24 VDC
Power consumption
65W at full intensity
Ingress protection rating
IP68 (-3m max.)
Impact resistance rating
IK10
External operating limits
ta max = 50°C (122°F)
Warranty
2-year warranty
Accessories
External power supply unit required

Light Beam Effects

  • Frost
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Elliptical wide
  • Wall wash


Overview

  • IP68 (-3m max.)
  • IK10
  • DMX
  • RDM
  • III
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • ETL certified version available on request

Downloads
