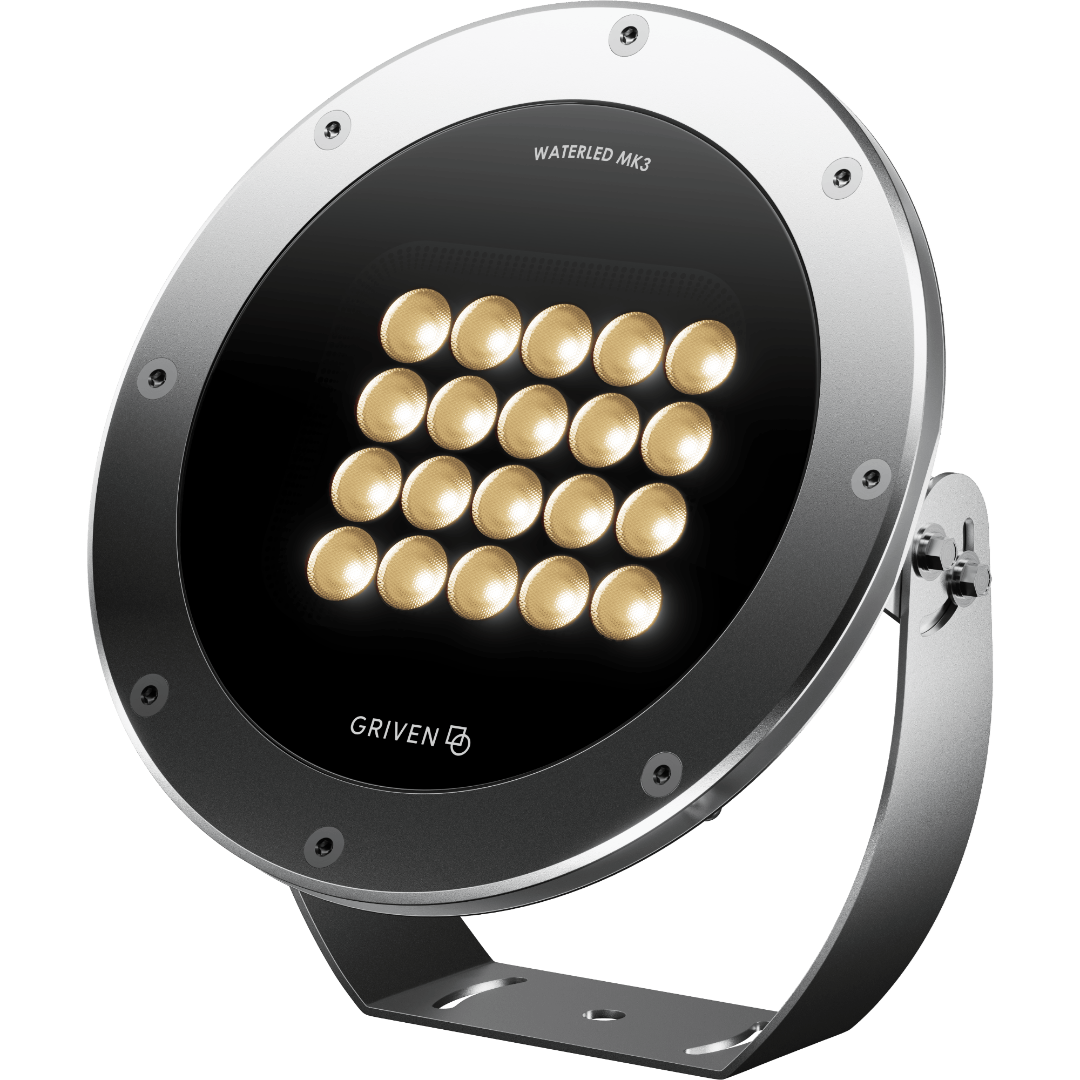

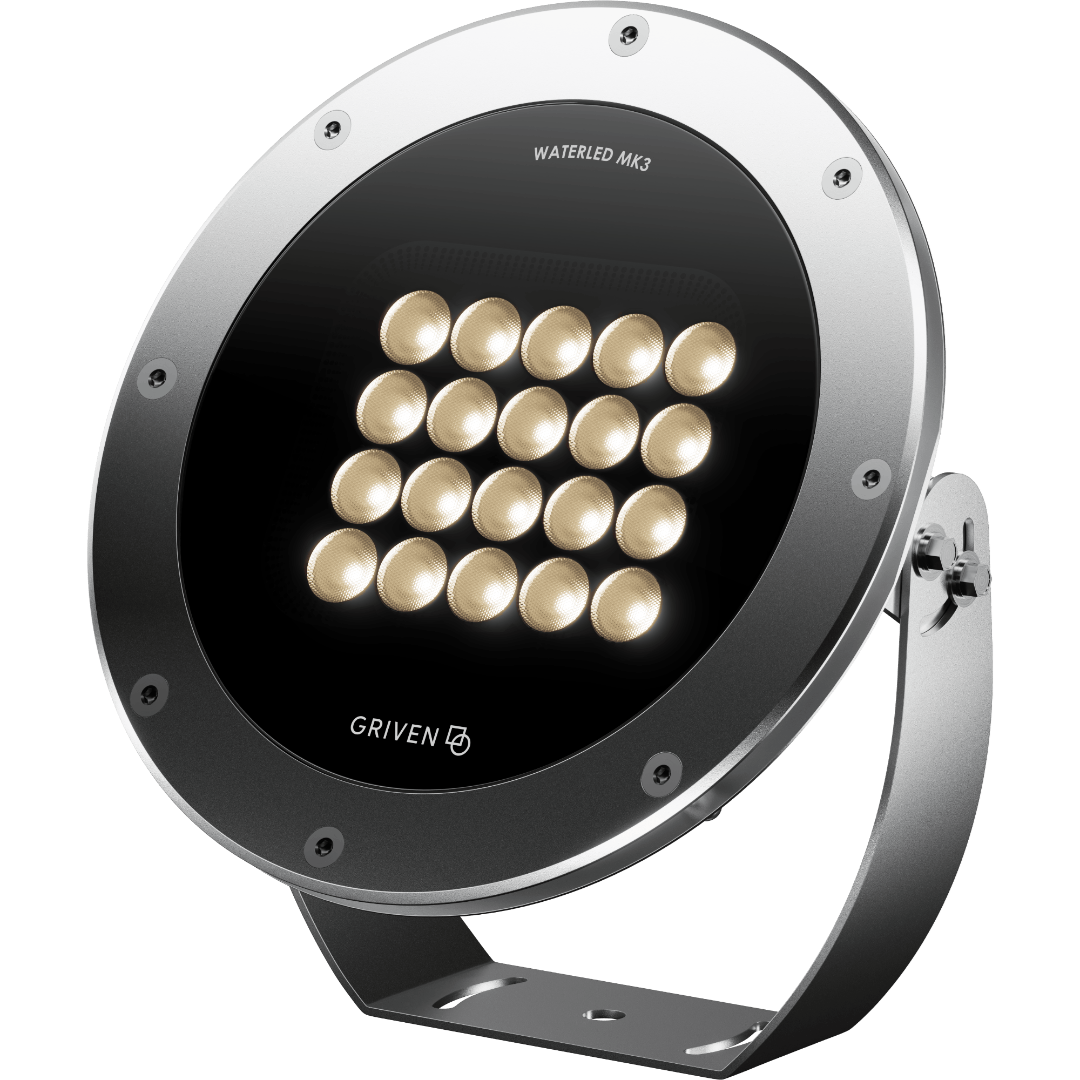

Waterled MK3 White Light

AL8373

  • Max. delivered lm output: 5040 lm / 105 lm/W
  • Size: (HxWxD) 272.5x255x89.5mm / 10.7x10x3.5”
  • Control system: DMX-RDM
  • Underwater LED fixture specific for a huge variety of large to medium sized installations in chlorine water and marine environment. FOR UNDERWATER USE ONLY.

View LED colour configuration: 40 Natural White 4000K
  • 40 Natural White 4000K
  • 30 Warm White 3000K
  • 27 Warm White 2700K
Contact us  Save product
TUNABLE & SOLID WHITE LIGHT
print

General Features

To be used in large to medium sized water features, WATERLED MK3 W, with its restyled and elegant AISI 316L stainless steel housing, relies upon an IP68 protection rating and is the ideal choice for a huge variety of lighting installations in chlorine water and marine environment. The extraordinary luminous output of this fixture does not compromise environmentally friendly consumption rates. DMX-RDM digital control system adds up to the infrared remote control option for an even more comfortable and straightforward fixture management. The natural or warm white LEDs set-ups available provide an unprecedented astonishing white light output quality allowing a broad range of application purposes.
Colour configuration
High brightness 4000K Natural White, 3000K or 2700K Warm White or, on request, monochrome power LEDs
Optical configuration
12° Spot (SP)
15° NA (Narrow)
25° ME (Medium)
48° WI (Wide)
61° EW (Extra wide)
14°x39° EL (Elliptical)
22°x37° WL (Elliptical wide)
19° (5° incl.)x38° WW (Wall Wash)
FR (Frost)
Max. Delivered lumen output
5040 lm (SP NW configuration)
Max. lumen/Watt
105 lm/W
Input voltage
24 VDC
Power consumption
48W at full intensity
Ingress protection rating
IP68 (-3m max.)
Impact resistance rating
IK10
External operating limits
ta max = 50°C (122°F)
Warranty
2-year warranty
Accessories
External power supply unit required

Light Beam Effects

  • Frost
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Elliptical wide
  • Wall wash


Overview

  • IP68 (-3m max.)
  • IK10
  • DMX
  • RDM
  • III
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • ETL certified version available on request

Downloads
