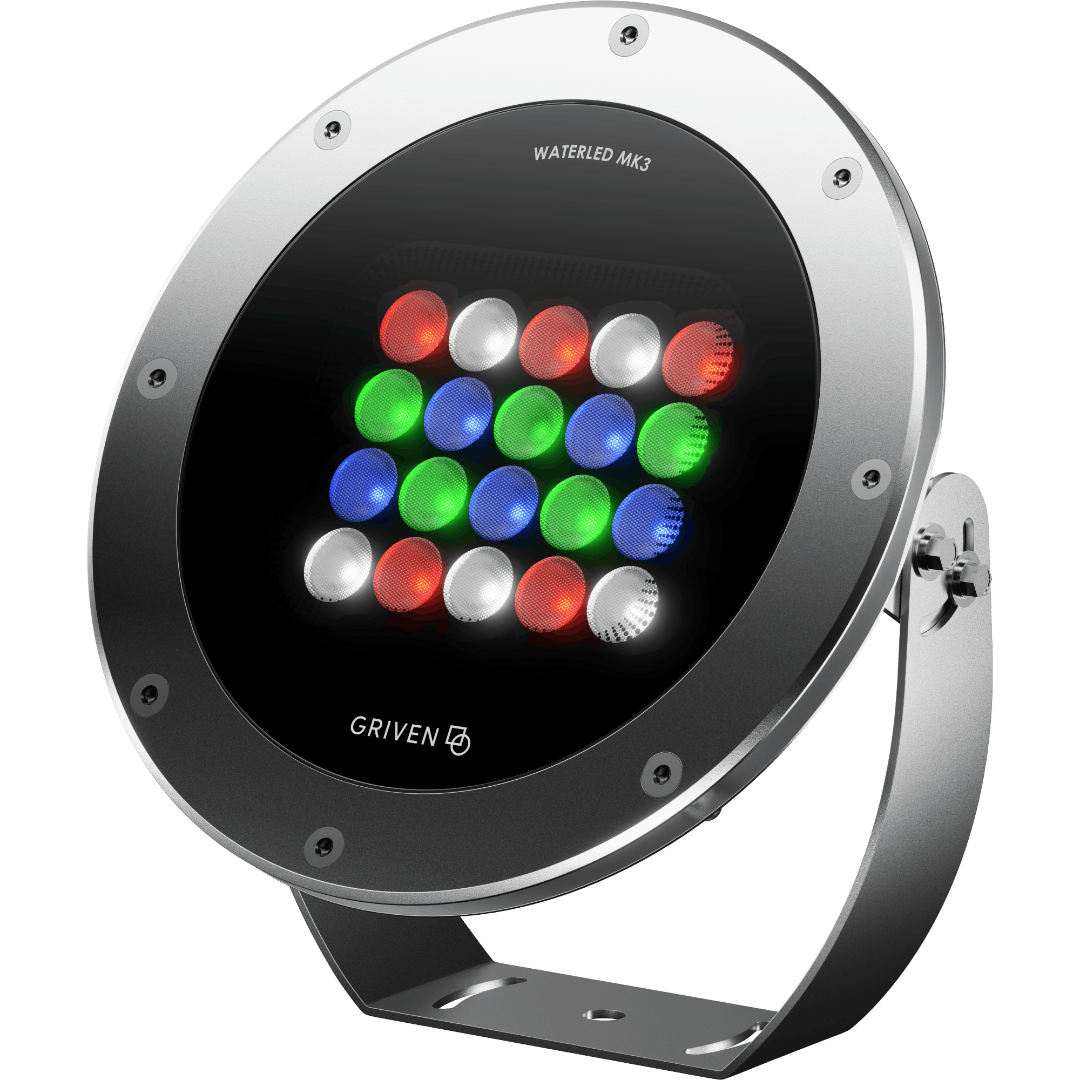

Waterled MK3 RGBW

AL8373

  • Max. delivered lm output: 1788 lm / 46 lm/W
  • Size: (HxWxD) 272.5x255x89.5mm / 10.7x10x3.5”
  • Control system: DMX-RDM
  • Underwater LED fixture specific for a huge variety of large to medium sized installations in chlorine water and marine environment. FOR UNDERWATER USE ONLY.

View LED colour configuration: RGB+W 4000K
  • RGB+W 4000K
  • RGB+W 3000K
Contact us  Save product
COLOUR CHANGING
print

General Features

To be used in large to medium sized water features, WATERLED MK3 RGBW, with its restyled and elegant AISI 316L stainless steel housing, relies upon an IP68 protection rating and is the ideal choice for a huge variety of lighting installations in chlorine water and marine environment. The combination of premium class RGBW LEDs, featuring either 4000K or 3000K white, delivers the widest range of warm white shades and pastel tones assortment. The extraordinary luminous output of this fixture does not compromise environmentally friendly consumption rates. DMX-RDM digital control system adds up to the infrared remote control option for an even more comfortable and straightforward fixture management.
Colour configuration
High brightness RGB+W 4000K or 3000K Power LEDs
Optical configuration
8° Spot (SP)
12° NA (Narrow)
23° ME (Medium)
44° WI (Wide)
59° EW (Extra wide)
9°x42° EL (Elliptical)
19°x39° WL (Elliptical wide)
14° (5° incline)x37° WW (Wall Wash)
FR (Frost)
Max. Delivered lumen output
1788 lm
Max. lumen/Watt
46 lm/W
Input voltage
24 VDC
Power consumption
39W at full intensity
Ingress protection rating
IP68 (-3m max.)
Impact resistance rating
IK10
External operating limits
ta max = 50°C (122°F)
Warranty
2-year warranty
Accessories
External power supply unit required

Light Beam Effects

  • Frost
  • Spot
  • Narrow
  • Medium
  • Wide
  • Extra Wide
  • Elliptical
  • Elliptical wide
  • Wall wash


Overview

  • IP68 (-3m max.)
  • IK10
  • DMX
  • RDM
  • III
  • Meets CE safety standards, Rohs compliant
  • Made in Italy

Optional Features

  • ETL certified version available on request

Downloads
